Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: wingstel
  • Model Number: GSM980
  • Coverage area: 2000m2
  • Export power: ≥27dBm
  • Frequency range: Uplink 890-915MHZ Downlink 935-960MHZ
  • Gain: Uplink Gp≥65 Downlink Gp≥70
  • Color: Blue/Gold
  • Weight: 0.82KG
  • Size: 200 x110 x 23mm
  • Quality warranty: 12 months
  • Certification: CE & FCC

Packaging & Delivery

Packaging Details one pcs in a box
Delivery Time 2-4days
Detailed Product Description

 A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals.  The repeater device features easy installation & operation, build-in indoor antenna and no interference.  It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones.  A mobile phone repeater is ideal for house, home, office use.





How Booster/Repeater Works?

Repeaters are designed to fulfill the idea of one and main principle: to fill the areas with the weak or bad signal and to amplify these low signals in order to provide you with the communication suitable for you.





Introduction To Mobile Phone Signal Repeater

1. Enhance Mobile Phone  Signal Strength

2. Improve  Communication  Quality

3. Reduce Cellphone  Radiation

4. Protract  Cellular Battery Life

5. Economic Building Cost

        6. Easy Operation

        7. Easy Installation

        8. Build-in Power Supply



Steps that describe the work of Repeater.



1) The outside antenna receives the signal from the nearest mobile base station.

2) The outside antenna sends the received signal through the coax cable to the installed Repeater.

3) The Repeater accepts the low signal and improves it.

4) The improved signal goes to the inside antenna through the connection coax cable.

5) The inside antenna send the improved good signal to your mobile phone.





Features

High gain,  easy installation and operation.

Full-duplex,  single-port design,  build-in power supply.

Use ALC technology,  adjust extent automatically

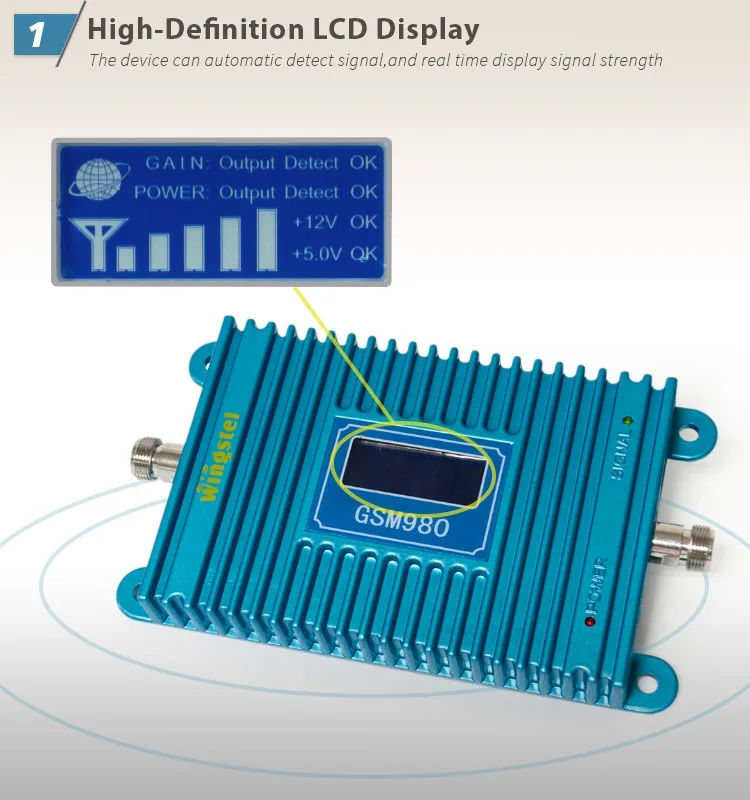

LED Light Working & Signal Condition Indicators

Big linear power,  control intermodulation & scatteration stably

Dependability stand by GB6993-86 standard

Compatibility of electromagnetism according with ETS300 609-4

CE and RoHs Approved















Technique



Frequency range

Uplink  890—915MHZ

Downlink  935-960MHz

Gain ( dB)

Uplink  Gp≥65 Downlink   Gp≥70

Export power (Po)

≥27dBm

Pass band ripple

≤3dB

I/O impedance

50Ω/N connector

Noise figure

≤4dB

Transmission Delay

≤0.5μs

Ambient temperature

-10°C~60°C

Power supply

AC110~240V    45~55Hz

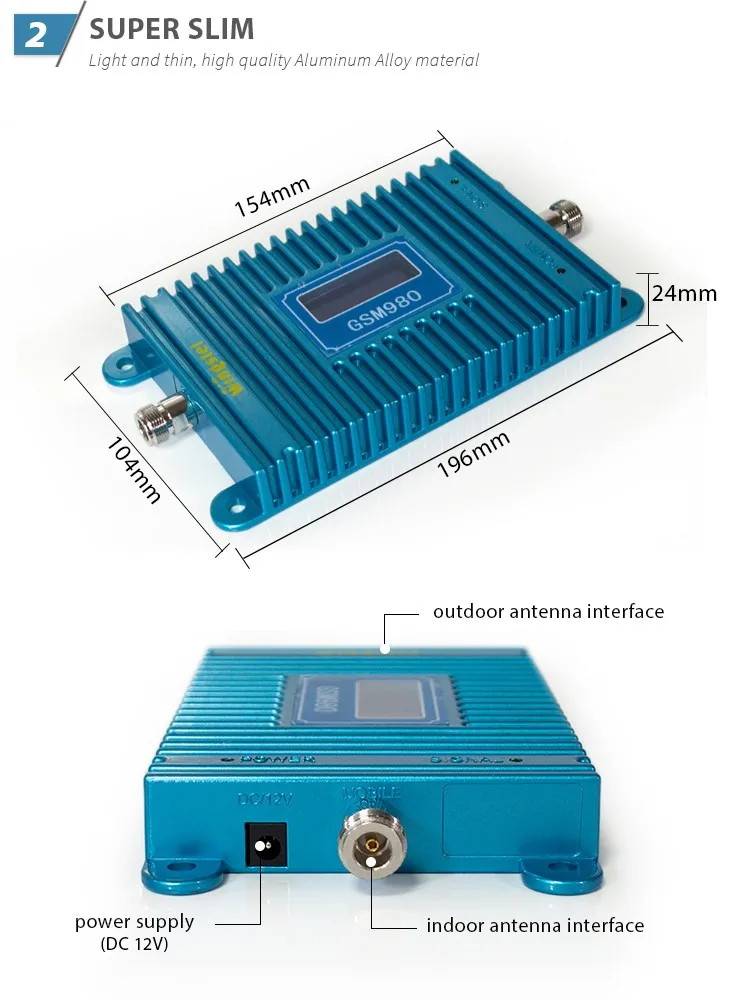

Size

200 x110 x 23mm

Reliability

To the GB6993-86 standard

Electromagnetic

 compatibility

To the ETS300 694-4 standard

Function

a) Power supply LED denote

b) Export power LED denote

coverage  area

2000m2



Accessories (Optional)

outdoor Log-periodic antenna / sucker antenna /Yagi antenna / panel antenna

indoor whip antennas / ceiling antenna / panel antenna

coaxial-cable.

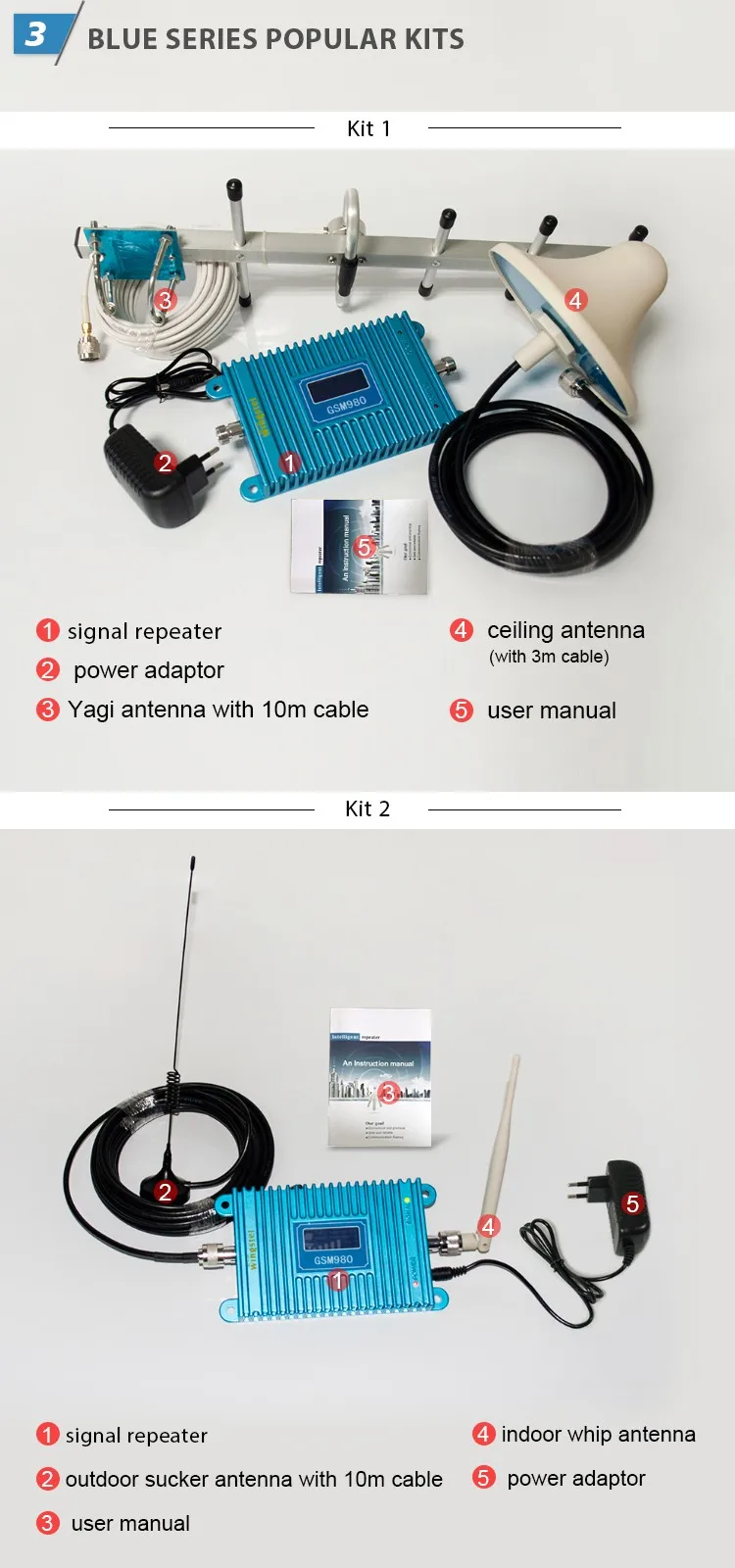

Packing list

signal repeater            1pc

power adaptor             1pc

Outdoorlog periodic antenna     1pc

Indoor ceiling antenna                1pc

10m 50/5 cable                             2pc

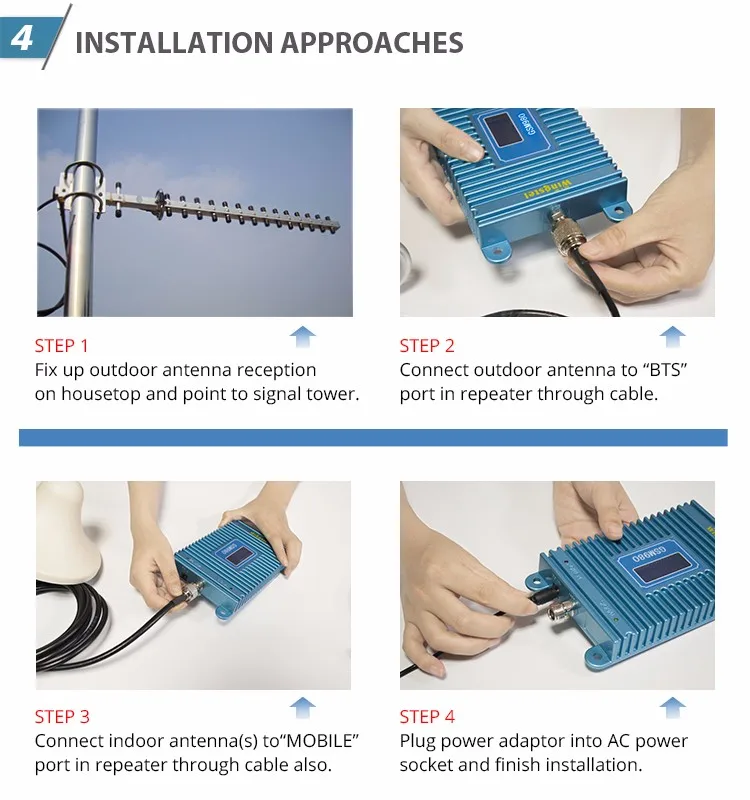

Installation Approaches

  1. Fix up outdoor antenna reception on housetop and point to signal tower.
  2. Connect outdoor antenna to “outdoor” port in repeater machine through cable.
  3. Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
  4. Plug power adaptor into AC power socket and finish installation.

Technique Supporting

  1. If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
  2. If can not call out, please adjust the direction of outdoor antenna.
  3. If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antenna have distance of 20 meters at least, with a wall between and not at the same horizontal line(outdoor antenna can be one floor higher than the repeater and indoor antenna).
  4. Indoor antenna and repeater better to be minimum 4 meters far away from nearby windows and doors.

To use this product to enlarge your signal, the outdoor signal shall be as good as possible. The product will not work well if our outdoor signal is not good or bad.



In case the indoor signal is always very low while outdoor signal is very good, the repeater can work well. If the indoor signal is sometimes full sometimes not at all before installing,  this environment is not suitable to install the repeater.





Reasons to Purchase Cell Phone Repeater.



1) The Signal Repeater provides the well-organized service that is why after installation of the system the quality of the connection will be really great.

2) Signal Repeater require no additional wires being attached to your cell phone thus allowing you to use your cell phone without any extra troublesome accessories, in other worlds, no physical connection to your cell phone.

3) They are practical, beautiful and easy to install. You will not need to hire anybody to provide the installation of the equipment. You will be able to install it by yourself using only the manual list attached to your repeater.

4) The system can be used by multiple phones. All phones that are under the coverage and are suitable for the frequency of your repeater can use the amplified signals.

5) Signal Repeater is able to cover different coverage: from small to large. In this case you can decide which of our repeater is suitable for your office or supermarket.

6) Repeater works at full duplex. It means that they not only receive the weak signal from the mobile base station and then divert to mobile phone after amplifier. They also receive the signal from your mobile phone and then send it to the mobile base station.

7) Our equipment is completely safe. Mobile repeaters do not produce any radiation.



The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;

3) Places distant from the BTS like private houses.



Note:

One indoor antenna only use for about 300 square meters. If you want to make all use of 1000 square meters which the host supports, you need to add more indoor antennas (about 3-4) and power divider / splitter.  Welcome your inquiry if you need.



Our Services

Sample Orders are supported. OEM service is available. We can make customized logo on product and packaging per requirement.
