Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: wingstel
  • Model Number: WT-GW03
  • Frequency: 900/1800MHz
  • Voltage: 100V-240V
  • Uplink: 890-915MHz/1710-1785MHz
  • Downlink: 935-960MHz/1805-1880MHz
  • Gain ( dB): Uplink Gp≥65 Downlink Gp≥70
  • Export Power: ≥30dBm
  • Size: 240 x182 x 22 mm
  • Coverage Area: 2000 m2
  • Certificate: CE
  • Color: White or Gold

Packaging & Delivery

Packaging Details One piece in a box
Delivery Time Shipped in 3 days after payment

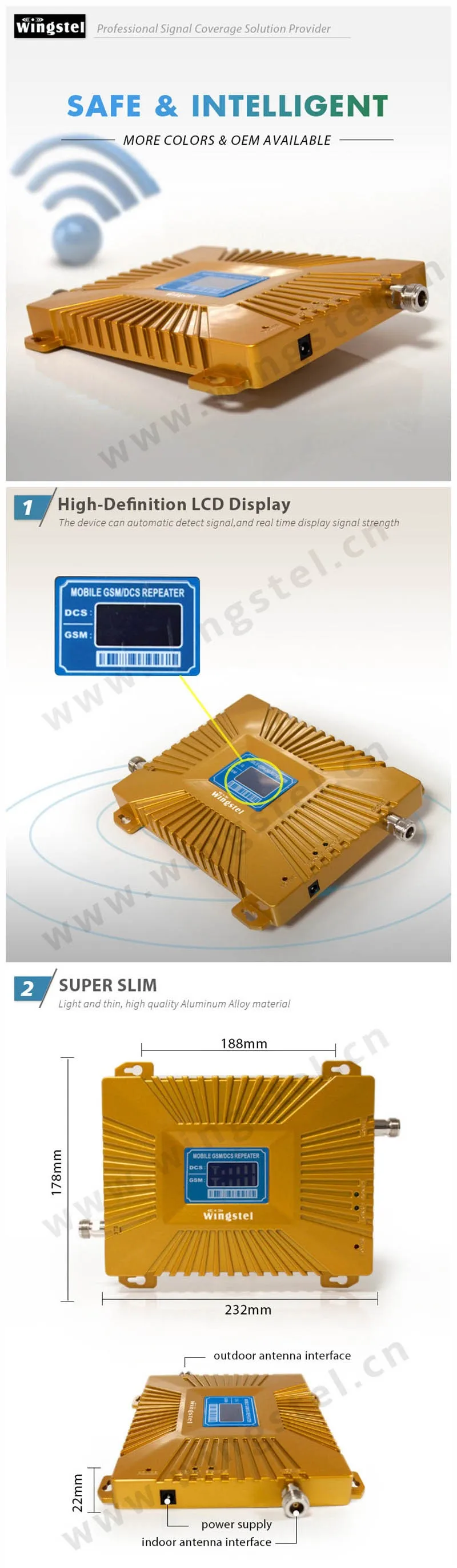

GSM 2g 4g 900/1800MHz Mobile Signal Booster with antenna and cable for cellphone

Product Description

The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal.  A mobile phone repeater could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones.



Features

High gain, easy installation and operation.

Full-duplex, single-port design

Use ALC technology,  adjust extent automatically

LCD screen & LED Light Working & Signal Condition Indicators

Big linear power,  control intermodulation & scatteration stably

Dependability stand by GB6993-86 standard

Compatibility of electromagnetism according with ETS300 609-4

CE and RoHs Approved

Theoretical coverage area 2000m2





Frequency range

Uplink:890-915MHz/1710-1785MHz Downlink:935-960MHz/1805-1880MHz

Gain ( dB)

Uplink  Gp≥65

Downlink   Gp≥70

Export power (Po)

≥23dBm

Pass band ripple

≤3dB

I/O impedance

50Ω/N connector

Noise figure

≤4dB

Transmission Delay

≤0.5μs

Ambient temperature

-10°C~60°C

Power supply

AC110~240V    45~55Hz

Size

232 x178 x 22 mm

Reliability

To the GB6993-86 standard

Electromagnetic

 compatibility

To the ETS300 694-4 standard

Function

a) Power supply LED denote

b) Export power LED denote

coverage  area

 2000 m2





ItemQuantity
Signal booster1pc
Outdoor yagi antenna with 10m cable1pc
Indoor ceiling antenna with 3m cable1pc
Power adaptor1pc
User manual1pc



Technique Supporting

  1. If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
  2. If can not call out, please adjust the direction of outdoor antenna.
  3. If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antenna have distance of 20 meters at least, with a wall between and not at the same horizontal line(outdoor antenna can be one floor higher than the repeater and indoor antenna).
  4. Indoor antenna and repeater better to be minimum 4 meters far away from nearby windows and doors.
  5. One indoor antenna can cover only 150-250 square meters. If you want to make all use of 1000 square meters which the host supports, you need to add more indoor antennas (about 3-4) and power divider / splitter.  Welcome your inquiry if you need.









Reasons to Purchase Our Wingstel Cell Phone Repeater.



1) The Signal Repeater provides the well-organized service that is why after installation of the system the quality of the connection will be really great.



2) Signal Repeater require no additional wires being attached to your cell phone thus allowing you to use your cell phone without any extra troublesome accessories, in other worlds, no physical connection to your cell phone.



3) They are practical, beautiful and easy to install. You will not need to hire anybody to provide the installation of the equipment. You will be able to install it by yourself using only the manual list attached to your repeater.



4) The system can be used by multiple phones. All phones that are under the coverage and are suitable for the frequency of your repeater can use the amplified signals.



5) Signal Repeater is able to cover different coverage: from small to large. In this case you can decide which of our repeater is suitable for your office or supermarket.



6) Repeater works at full duplex. It means that they not only receive the weak signal from the mobile base station and then divert to mobile phone after amplifier. They also receive the signal from your mobile phone and then send it to the mobile base station.



7) Our equipment is completely safe. Mobile repeaters do not produce any radiation.



Our Services

1.Sample Orders are supported.We can send the sample in 1-3days after getting your payment

2.OEM service is available. We can make customized logo on product and packaging per requirement.

3.1year warranty

4.CE certificated
